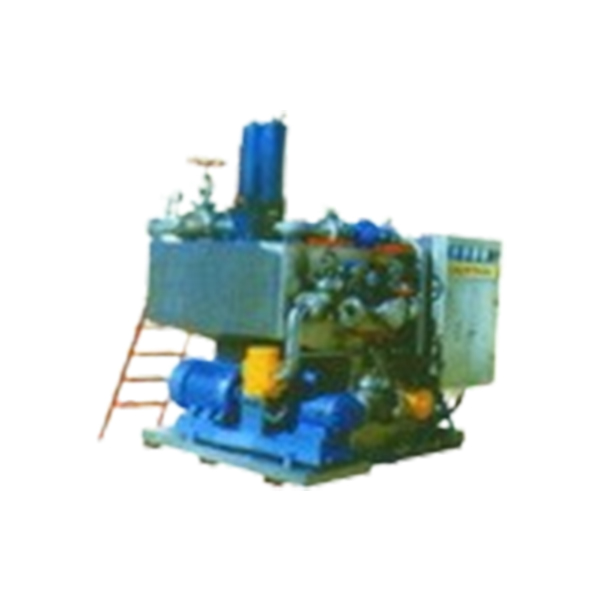

液压投油管路清洗泵站由泄油柜、循环柜、驳油集油系统及液压回路、电加热温控系统、 电控箱、管路等组成。用于船舶投油、集油、管路清洗等。
Pump device for hydraulic p~pes f,ushing consists of drainage tank,cycle oil tank, oiling and collectionsyslem.electric-heater and temperatut-contrcol system,electric-control box.pipes and so on.It can be used for oiling.oil collection and flushing within ship's pipes etc.
1电控箱 electric control box | 12三通实验阀 three way test valve |
2螺杆泵及电机 screw pump and electric | 13溢流阀 overflow valve |
3吸油滤器 oil filter | 14人孔盖 manhole cover |
4单向阀 check valve | 15油箱箱体 oil box body |
5压力表 pressure guage | 16空气滤清器 air cleaner |
6球阀 ball valve | 17油位计 oil level |
7流量计 flux scale | 18吊耳 lifting eye |
8压力式温度计 pressure type | 19电加热器 electric-heater |
9双联粗滤器 duplex oil filter | 20放泄螺塞 drain plug |
10青铜止回阀 bronze check valve | 21槽钢 channel steel |
11温度控制器 temperature controller |
