管道液位信号器

管道液位信号器适用于工业过程中各种输液管道中液位的检测和控制,可对复杂管略的输液过程,管路中的液位情况,管路中液体的波动状态进行自动化控制。

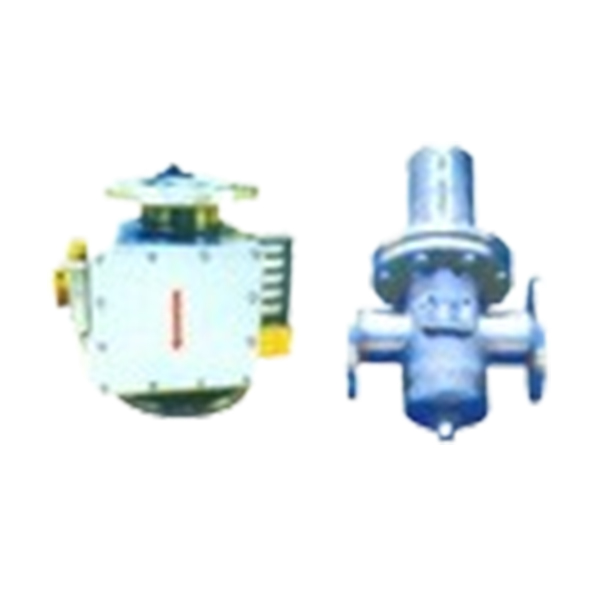

管道液位信号器适用于工业过程中各种输液管道中液位的检测和控制,可对复杂管略的输液过程,管路中的液位情况,管路中液体的波动状态进行自动化控制。管道液位信号器分水平和垂直两种安装形式。水平安装式是由逻辑电路组成的二位式控制器.其切换值可在全量程内任意设定。开关输出信号表示液位到达设定点与否。二点切换位置的切换差同样能在全量程内调节。垂直安装式是通过磁场一浮球机构组成,在管道溢流时,既可直观显示,又可输出报警信号。

Pipe level signal meters are suitable for the detecting and controlling of the liquid in pipes. Tht liquidtransmitting process,level and the wave state in complex pipes may be controlled automatically.They are divided into horizontal and vertical by installation method.Horizontal type is "2-psints"controller by logic circuit,the two points of level can be preset at while measure range.The difference between the two levels can be adjustde too.Theoutput signal repesent that the level comes to the preset or not.Vertical type pipelevel signal meter could been viewed and alarm immediately by magnet-float mechanism in overflow pipe.

主要技术参数 Main technical parameters

工作压力Working pressure0.1Mpa
实验压力Testing pressure0.15Mpa
触点容量Contact capacitance220VAC 1A
介质粘度Medium viscosity≤0.02Pa.s
电源工作压力Power supply24VDC 30W
连接法兰GB2506-89  0.6Mpa
