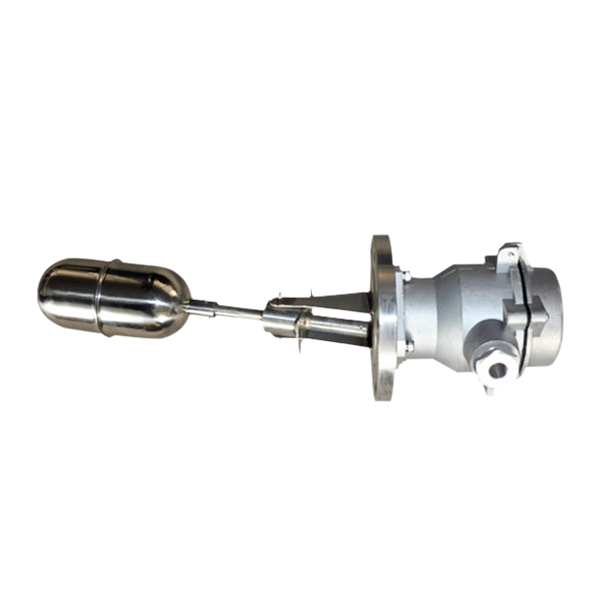

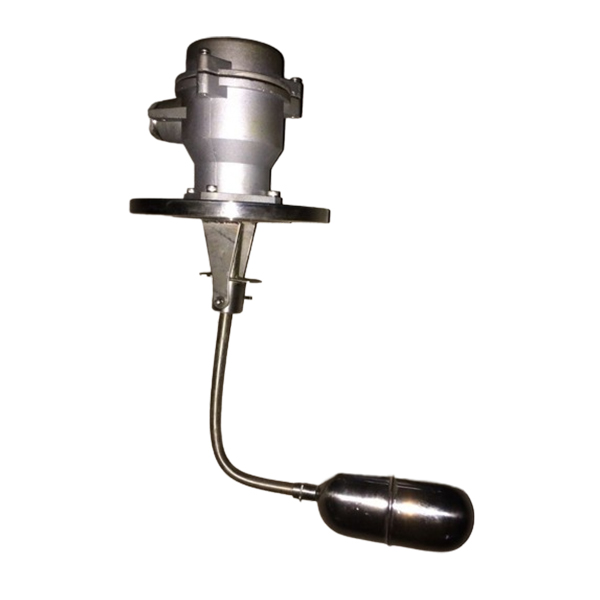

UQK-01／02／03型船用液位控制器适用于船舰、化工及其它工业设备中对舱柜内介质的液位进行两位式控制和报警。防爆型开关还适用于ExdllCT3一T6防爆场合的液位控制。
UQK-0I／02／03The ftoat level controller is widely used in ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid the site of explosion-proof class is ExdllCT3-T6.
主要技术参数 Main technical parameters
型号 Type | 公称压力 Nominal Pressure | 控制范围 Control range(mm) | 整定方式 Regulate type | 安装形式 Mounting type | 材料Matefial | 介质温度 Medium Temperature | 触点容量 Power supply | 防护等级 Proteaion | |
法兰Flange | 浮球Float | ||||||||
UQK-01-C | ≤ 1.0Mpa | 10~30 | 定值不可调 Fixed value | 侧装、顶装 Horizontal、Vertical | 1Cr18Ni9Ti | 1Cr18Ni9Ti | t≤150℃ | AC:220V 1.5A 110V 2.5A DC:240V 0.5A 24V.5A | lp65 |
UQK-01-CB | ≤ 4.0Mpa | 铸青铜Bronze | |||||||
UQK-02-C | ≤ 1.0Mpa | 25~550 | 分级可调 Class and Adjustable | 侧装 Horizontal | 1Cr18Ni9Ti | ||||
UQK-02-CB | ≤ 4.0Mpa | 铸青铜Bronze | |||||||
UQK-03-C | ≤ 1.0Mpa | 8~1000 | 无级可调 adjustable | 顶装 Vertical | 1Cr18Ni9Ti | ||||
UQK-02-CB | ≤ 4.0Mpa | 铸青铜Bronze | |||||||
