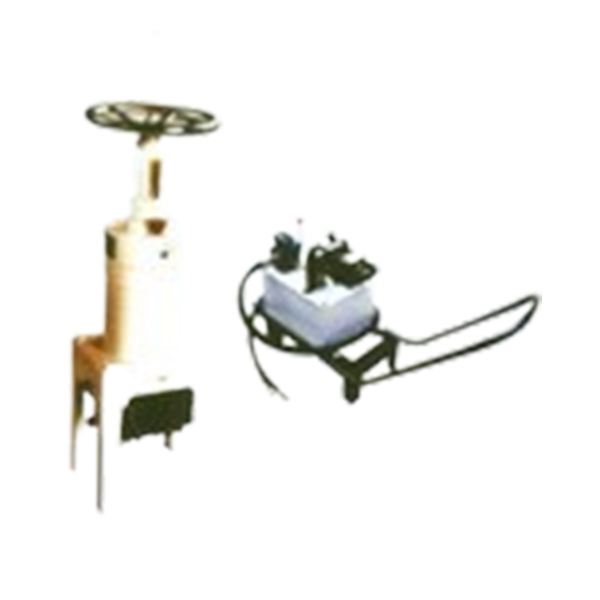

液压操纵装置系统主要用于远程操作液动平面阀、液动碟阀等船用液动阀门、通常由手动液控装置和手动泵应急小车组成、两者既可单独使用，又可相互配合使用，当手动液控装置部分失灵时。将备用应急小车出油口与液控装置应急接口相联，仍然可对液动阀进行远距离操作。
Hydraulic control gear is used for remote control to operate the hyrdraulic fiat valve or the hydraulic disc valve.It Contains manual hy-draulic actuator and emerqency hand pump barrow,they can be able to work alone one each
other or work together with each other.When manual hydraulic actuator is failure,one can operate the hydraulic valve remotely by connecting the oil outlet of ernerqency hende pump ba-ow with the manual hydraulic actuator.
基本参数 Parameter list
| 基本参数 Basic parameter | 手动液控装置 Manual hydraulic actuator | 手动泵应急小车 Emergency hand pump barrow |
| Z大工作压力 Max.working pressure | 8.0MPa | 8.0MPa |
| 工作温度 working temperature | 0~60℃ | 0~60℃ |
| 工作介质 working medium | 液压油 Hydraulic oil | 液压油 Hydraulic oil |
| 有效容积 Effective capacity | 3.6L | 9L |
| 接口形式 Connecting type | 双卡套接头配∮8×1紫铜管 Double-sleeve joint with copper pipe | M16×1.5（软管长度）hose length:4m |
